21M-ACC Parts Diagram

Quadrafire 21M-ACC Interactive Parts Finder

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.

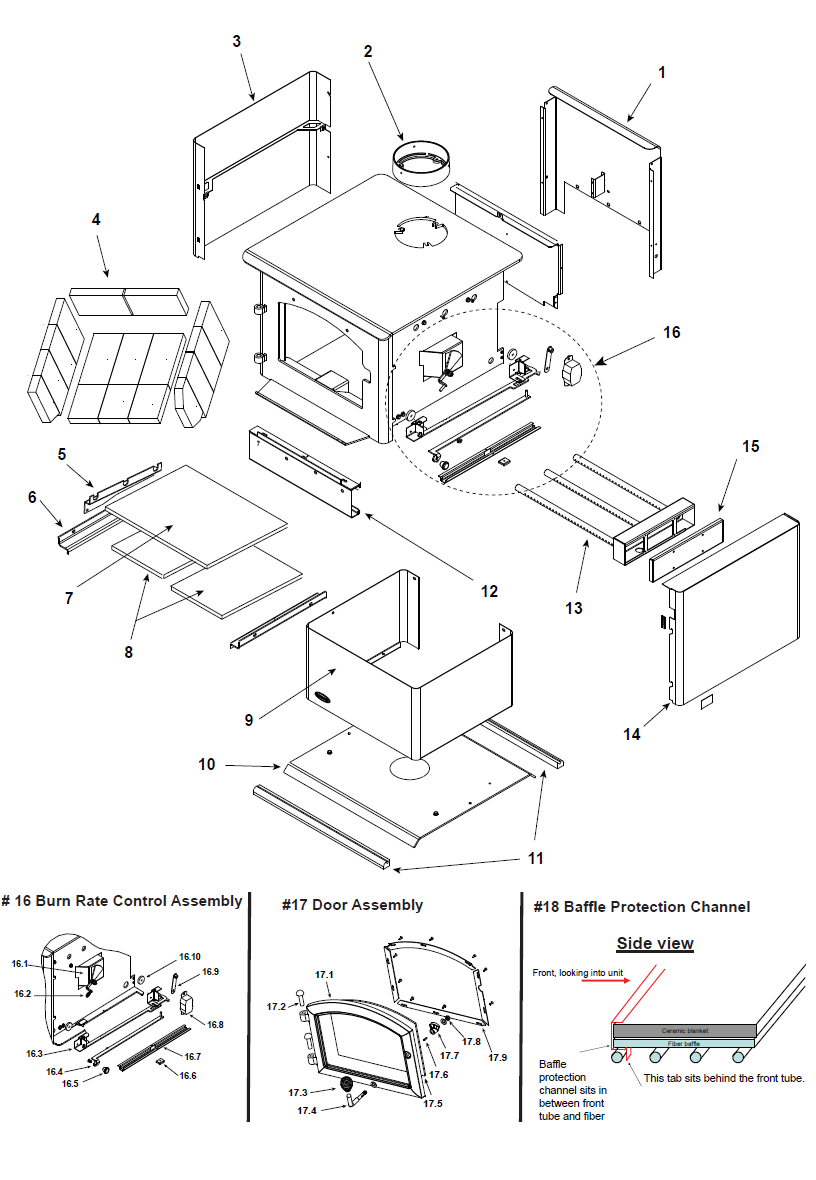

Quadrafire 21M-ACC Wood

.

#1 - Quadra-Fire Convection Air Channel (SRV7039-107)Price: $275.00Part : SRV7039-107view details
#2 - Heatilator & Quadra-Fire Cast Iron Flue Collar (SRV7000-302)Price: $110.00Part : SRV7000-302view details
#3 - Quadra-Fire 21M-ACC Side Panel Assembly - Left (SRV7039-003)Price: $299.00Part : SRV7039-003view details
#4 - Quadra-Fire Complete Brick Assembly (SRV7039-007)Price: $245.00Part : SRV7039-007view details
#N/S - HHT Single Brick (832-0550)Price: $29.00Part : 832-0550view details
#N/S - HHT Single Brick - Set of 6 (832-3040)Price: $96.00Part : 832-3040view details
#5 - Quadra-Fire Tube Support Rack (SRV7039-108)Price: $179.00Part : SRV7039-108view details
#7 - HHT Ceramic Blanket - 1/2" Thick (832-3390)Price: $80.00Part : 832-3390view details
#8 - Quadra-Fire Fiberboard Baffle - Set of 2 (SRV7039-111)Price: $99.00Part : SRV7039-111view details
#12 - Quadra-Fire Rear Air Channel Assembly (SRV7039-001)Price: $299.00Part : SRV7039-001view details
#13 - Quadra-Fire Manifold Tube Channel Assembly (SRV7039-004)Price: $285.00Part : SRV7039-004view details
#14 - Quadra-Fire 21M-ACC Side Panel Assembly - Right (SRV7039-002)Price: $287.00Part : SRV7039-002view details
#15 - Quadra-Fire Top Tube Channel Access Cover (SRV7039-114)Price: $227.00Part : SRV7039-114view details
#N/S - Quadra-Fire Component Pack (7039-011)Price: $79.00Part : 7039-011view details
#16.2B - Heat N Glo & Quadra-Fire 1/4" Gold Spring Handle Set (832-0630)Price: $41.00Part : 832-0630view details
#16.2C - HHT 1/4" Black Spring Handle (SRV7000-614)Price: $74.00Part : SRV7000-614view details
#16.10 - HHT Air Timer Door Gasket (7033-282)Price: $6.00Part : 7033-282view details
#16.3 - Quadra-Fire Timer Air Control Assembly (SRV7039-015)Price: $215.00Part : SRV7039-015view details
#16.4 - Quadra-Fire 2100 Millennium ACC Rear Air Control Arm Assembly (SRV7039-006)Price: $121.00Part : SRV7039-006view details
#16.5 - Quadra-Fire Start Up Control Knob (SRV7000-343)Price: $22.00Part : SRV7000-343view details
#16.6 - HHT Latch Magnet for Air Control (SRV229-0631)Price: $12.00Part : SRV229-0631view details
#16.8 - HHT Timer Assembly (SRV480-1940)Price: $125.00Part : SRV480-1940view details
#17.1 - Quadra-Fire 21M-ACC Black Door Assembly (SRV7039-008)Price: $576.00Part : SRV7039-008view details
#17.2A - Quadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (832-0250)Price: $69.00Part : 832-0250view details
#17.2B - Heatilator & Quadra-Fire Nickel Hinge Pin - 1/2" (SRV430-5320)Price: $34.00Part : SRV430-5320view details
#17.2C - Heatilator & Quadra-Fire 1/2" Black Hinge Pins - 2 Pack (7000-606/2)Price: $46.00Part : 7000-606/2view details
#17.3B - HHT 1/2" Gold Spring Door Handle (832-0620)Price: $37.00Part : 832-0620view details
#17.3C - HHT 1/2" Black Spring Door Handle (SRV7000-613)Price: $75.00Part : SRV7000-613view details
#17.4 - Heatilator Eco-Choice & Quadra-Fire Formed Door Handle (SRV430-1131)Price: $39.00Part : SRV430-1131view details
#17.5 - Quadra-Fire & Heat N Glo Door Glass Assembly with Gasket (SRV7000-013)Price: $174.00Part : SRV7000-013view details
#17.6 - HHT Door Cam Latch Key - 5/8" (SRV430-1151)Price: $11.00Part : SRV430-1151view details
#17.7 - HHT Door Cam Latch (SRV430-1141)Price: $19.00Part : SRV430-1141view details
#17.9 - Quadra-Fire Glass Frame Set (GL-FRM-21M)Price: $73.00Part : GL-FRM-21Mview details
#18 - Quadra-Fire Baffle Protection Channel (SRV7039-144)Price: $87.00Part : SRV7039-144view details
#N/S - HHT Glass Gasket Tape - 3/4" x 5' (832-0460)Price: $20.00Part : 832-0460view details
#N/S - HHT Door Rope Gasket - 3/4" x 7' (832-1680)Price: $38.00Part : 832-1680view details
#N/S - HHT Touch Up Paint - Matte Black (812-0910)Price: $49.00Part : 812-0910view details
#N/S - Quadra-Fire Trimount Plugs (229-0880/24)Price: $36.00Part : 229-0880/24view details
#N/S - Quadra-Fire & Heat N Glo Door Handle Assembly (832-0540)Price: $87.00Part : 832-0540view details
#N/S - Quadra-Fire Outside Air Cover Plate Assembly (SRV7033-041)Price: $74.00Part : SRV7033-041view details
#N/S - Quadra-Fire Burn Rate Label (SRV7033-160)Price: $15.00Part : SRV7033-160view details
#N/S - Quadra-Fire Start-Up Air Control Label (SRV7033-166)Price: $19.00Part : SRV7033-166view details
#N/S - Heatilator Eco-Choice & Quadra-Fire Blower Kit ACC (BK-ACC)Price: $449.00Part : BK-ACCview details
#N/S - Heatilator Eco-Choice & Quadra-Fire Blower Control Box (SRV7000-194)Price: $174.00Part : SRV7000-194view details
#N/S - HHT Convection Blower (812-4900)Price: $239.00Part : 812-4900view details
#N/S - Quadra-Fire Component Pack (7033-051)Price: $19.00Part : 7033-051view details
#N/S - HHT Convection Fan Snap Disc #1 (SRV230-0470)Price: $36.00Part : SRV230-0470view details
#N/S - Quadra-Fire Wire Harness (7033-262)Price: $23.00Part : 7033-262view details
#N/S - Quadra-Fire Manifold Tube Gasket (4 Pack) (7038-168/4)Price: $39.00Part : 7038-168/4view details
#N/S - Heatilator & Quadra-Fire Outside Air Kit (OAK-ACC)Price: $67.00Part : OAK-ACCview details
#N/S - HHT Outside Air Shield (SRV33271)Price: $42.00Part : SRV33271view details
#N/S - Quadra-Fire Door Upgrade Kit - Satin Nickel (UK-DRNL)Price: $92.00Part : UK-DRNLview details
#N/S - Heatilator & Quadra-Fire Nickel Hinge Pin - 1/2" (SRV430-5320)Price: $34.00Part : SRV430-5320view details
#N/S - HHT AVK Repair Kit (RIVNUT-REPAIR)Price: $125.00Part : RIVNUT-REPAIRview details
#N/S - Quadra-Fire Hex Head Bolts (25221A/10)Price: $24.00Part : 25221A/10view details
#N/S - HHT Flange Nuts (226-0130/24)Price: $24.00Part : 226-0130/24view details
#N/S - Quadra-Fire Glass Tab Screws (832-0860)Price: $20.00Part : 832-0860view details
#N/S - HHT Sheet Metal Screws #8 x 1/2 S-Grip - Package of 40 (12460/40)Price: $14.00Part : 12460/40view details
#N/S - HHT Washer - Package of 24 (28758/24)Price: $14.00Part : 28758/24view details
#N/S - HHT 3/8 SAE Washer Set - 3 Pack (832-0990)Price: $22.00Part : 832-0990view details
