2400 Insert Parts Diagram
Osburn 2400 Insert Interactive Parts Finder

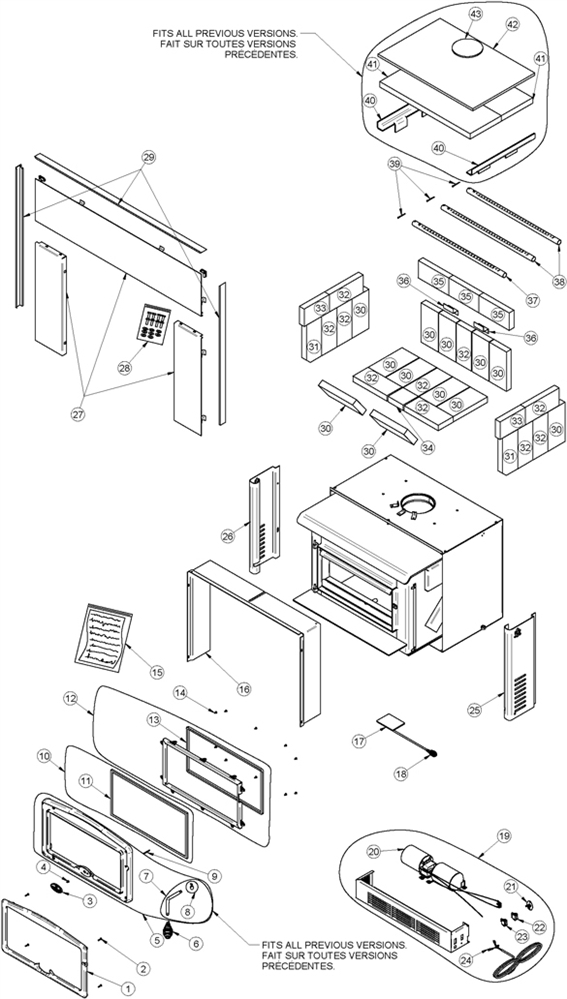

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.
| #1 - Osburn 2400 Cast Iron Door Overlay - Black (OA10090) | Price: $150.00 | Part : OA10090 | view details |
| #5 - Osburn 2400 Cast Iron Door (SE24134) | Price: $225.00 | Part : SE24134 | view details |
| #6 - SBI 1/2 Inch Black Coil Handle (AC07868) | Price: $14.00 | Part : AC07868 | view details |
| #7 - Osburn Handle and Latch Kit (AC09187) | Price: $35.00 | Part : AC09187 | view details |
| #8 - SBI Door Latch Kit (AC09185) | Price: $30.00 | Part : AC09185 | view details |
| #9 - SBI Spring Tension Pin (30101) | Price: $4.00 | Part : 30101 | view details |
| #11 - SBI Self Adhesive Glass Gasket - 6 Feet (AC06400) | Price: $15.00 | Part : AC06400 | view details |
| #12 - Osburn 2400 Glass Retainer with Gasket (SE39102) | Price: $65.00 | Part : SE39102 | view details |
| #13 - Osburn & PSG Door Rope Gasket Kit w/Silicone (OA11400) | Price: $35.00 | Part : OA11400 | view details |
| #16 - Faceplate Extension for Osburn 2400 Woodstove Inserts (PL39094) | Price: $55.00 | Part : PL39094 | view details |
| #17 - Osburn Air Control Plate (SE34021) | Price: $15.00 | Part : SE34021 | view details |
| #18 - Osburn and Flame 1/4" Black Coil Handle (AC07866) | Price: $10.00 | Part : AC07866 | view details |
| #19 - Osburn 2400 Blower Assembly with Housing (SE39150) | Price: $455.00 | Part : SE39150 | view details |
| #20 - Osburn Double Squirrel Cage Fan (44076) | Price: $300.00 | Part : 44076 | view details |
| #21 - SBI 110 Degree Thermodisc (44028) | Price: $25.00 | Part : 44028 | view details |
| #22 - Osburn 3 Position Rocker Switch (44092) | Price: $10.00 | Part : 44092 | view details |
| #23 - SBI Gold Contact Two Position Rocker Switch (44093) | Price: $10.00 | Part : 44093 | view details |
| #24 - SBI 8' Power Cord Replacement (60013) | Price: $15.00 | Part : 60013 | view details |
| #25 - Right Decorative Panel for Osburn 2400 Woodstove Inserts (PL39149) | Price: $55.00 | Part : PL39149 | view details |
| #26 - Left Decorative Panel for Osburn 2400 Woodstove Inserts (PL39148) | Price: $55.00 | Part : PL39148 | view details |
| #27 - Osburn 2400 Regular Faceplate (OA10315) | Price: $200.00 | Part : OA10315 | view details |
| #28 - Enerzone & Osburn Faceplate Hardware Kit (SE15099) | Price: $25.00 | Part : SE15099 | view details |
| #29 - SBI Regular Faceplate Trim Kit - Black (OA10122) | Price: $120.00 | Part : OA10122 | view details |
| #30 - Century, Drolet & Osburn Refractory Brick (29020) | Price: $12.00 | Part : 29020 | view details |
| #36 - Osburn 2400 Rear Brick Retainer (PL39027) | Price: $15.00 | Part : PL39027 | view details |
| #37 - Osburn 2400 Front Secondary Air Tube (PL39015) | Price: $60.00 | Part : PL39015 | view details |
| #38 - Osburn 2400 Back/Middle Secondary Air Tube (PL39018) | Price: $60.00 | Part : PL39018 | view details |
| #39 - SBI Stainless Steel Cotter Pin (30068) | Price: $4.00 | Part : 30068 | view details |
| #40 - Osburn 2400 Side Baffle Support (PL39013) | Price: $25.00 | Part : PL39013 | view details |
| #41 - Osburn 2400 C-Cast Baffle (21297) | Price: $95.00 | Part : 21297 | view details |
| #42 - Osburn 2400 Baffle Insulation (PL39047) | Price: $30.00 | Part : PL39047 | view details |
| #43 - SBI Baffle Insulation Weight (PL34026) | Price: $25.00 | Part : PL34026 | view details |
