Accentra52i Parts Diagram

Accentra52i Interactive Parts Finder

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.

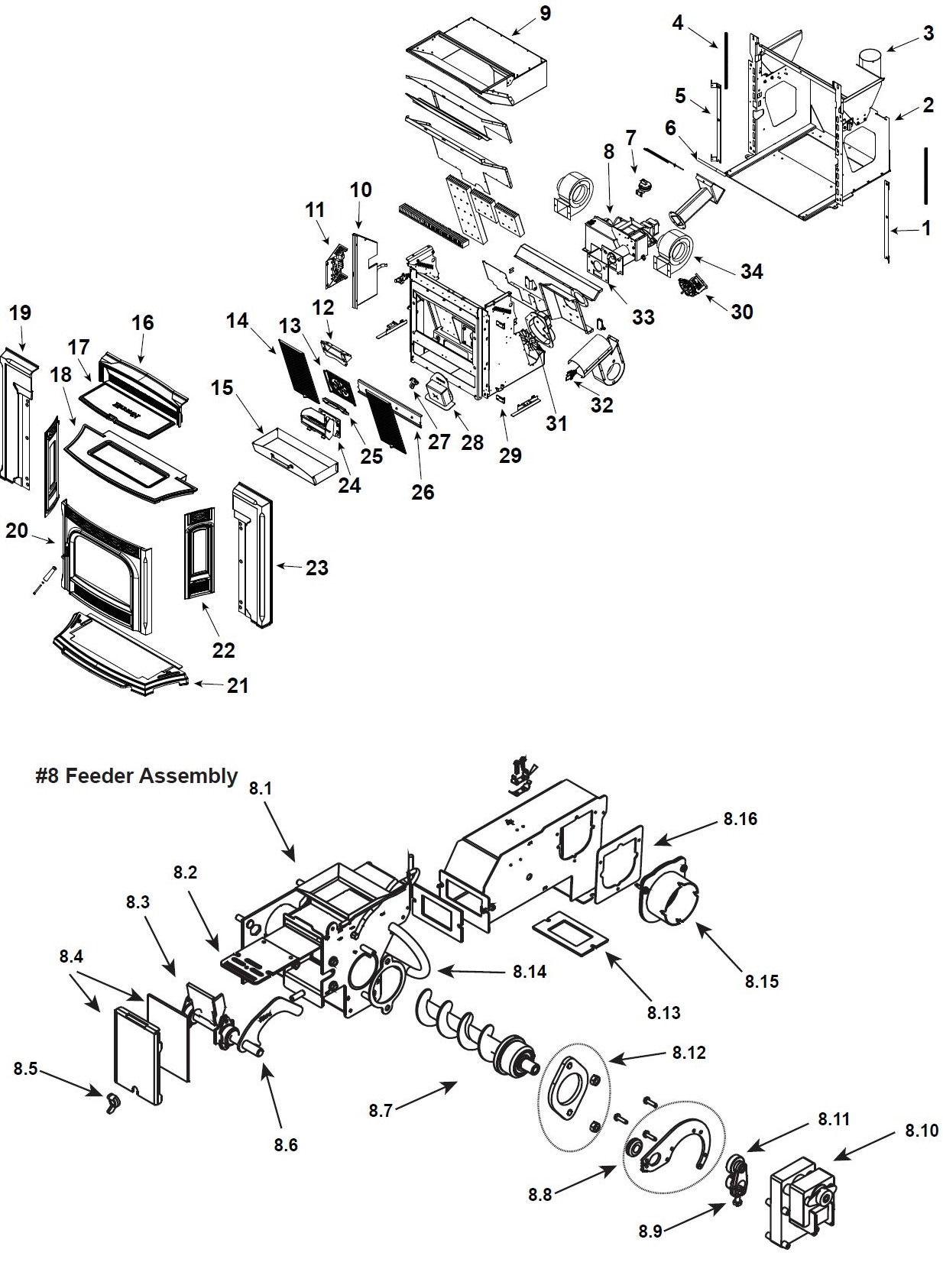

Harman Accentra52i
#1 - Harman Accentra52i/-TC Cast Side Hinges (1-00-574075)Price: $195.00Part : 1-00-574075view details
#N/S - Harman Cage Roller Hardware Kit (1-00-02243)Price: $48.00Part : 1-00-02243view details
#3 - Harman Accentra 52i/-TC Pipe Stub for 4 inch Flex/ PL with Gasket (1-00-574034)Price: $239.00Part : 1-00-574034view details
#N/S - Harman Accentra 52i Pipe Stub Plate Gasket (3-44-574045)Price: $72.00Part : 3-44-574045view details
#4 - Harman Accentra Insert/52i & P35i Frame Jacking All Thread (3-31-00949)Price: $15.00Part : 3-31-00949view details
#N/S - Harman Accentra52i/-TC Jack Plate (1-10-574099W)Price: $29.00Part : 1-10-574099Wview details
#5 - Harman Accentra52i/-TC Cast Side Hinges (1-00-574075)Price: $195.00Part : 1-00-574075view details
#6 - Harman Insert Docking Gasket - Silicone (3-44-06108)Price: $46.00Part : 3-44-06108view details
#N/S - HHT Silicone Tubing - 1/8" x 5' (1-00-5113574)Price: $44.00Part : 1-00-5113574view details
#8 - Harman Feeder Assembly (1-10-574055A)Price: $1607.00Part : 1-10-574055Aview details
#8.1 - Harman UL Feeder Weldment (1-10-724132)Price: $417.00Part : 1-10-724132view details
#8.10 - Harman 4 RPM CW Feeder Motor (3-20-60906)Price: $209.00Part : 3-20-60906view details
#8.11 - Harman UL Feeder Cam Bearing (3-31-3014)Price: $11.00Part : 3-31-3014view details
#8.12 - Harman & Heatilator Feeder Bearing Retainer (1-00-04035)Price: $26.00Part : 1-00-04035view details
#8.13 - Harman Ultra Air Intake Gasket (UL Feeder Snout Gasket) (3-44-677160)Price: $7.50Part : 3-44-677160view details
#8.14 - HHT Feeder Air Crossover Tube Kit (1-00-67900)Price: $42.00Part : 1-00-67900view details
#8.15 - HHT UL Air Intake Assembly with Gasket (1-10-06810A)Price: $55.00Part : 1-10-06810Aview details
#8.16 - Harman and Heatilator Eco-Choice Feeder Air Intake Gasket (3-44-72224)Price: $4.50Part : 3-44-72224view details
#8.2 - Harman UL Slide Plate Assembly (1-10-677121A)Price: $97.00Part : 1-10-677121Aview details
#8.3 - Harman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)Price: $7.50Part : 3-31-3614087view details
#8.4 - HHT UL Feeder Cover and Gasket - 2 Sets (1-00-677122)Price: $77.00Part : 1-00-677122view details
#8.5 - Harman 5/16" Wing Nut - Single (3-30-8012)Price: $2.00Part : 3-30-8012view details
#8.6 - Harman & Heatilator Eco-Choice UL Feeder Pusher Arm (1-10-677187W)Price: $101.00Part : 1-10-677187Wview details
#8.7 - Harman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)Price: $186.00Part : 3-50-00565view details
#8.8 - HHT UL Auger Motor Mount with Grommet (1-00-247406)Price: $23.00Part : 1-00-247406view details
#8.9 - Harman and Heatilator Eco-Choice UL Cast Feeder Cam Block (3-00-677154)Price: $22.00Part : 3-00-677154view details
#N/S - HHT Silicone Tubing 9mm x 13mm x 5' (1-00-511427)Price: $48.00Part : 1-00-511427view details
#9a - Harman 20" Hopper Assembly (1-10-574334A) Price: $529.00Part : 1-10-574334Aview details
#9b - Harman 22" Hopper Assembly (1-10-574339A) Price: $530.00Part : 1-10-574339Aview details
#9c - Harman Accentra 52i Hopper Assembly 24" (1-10-574038A)Price: $489.00Part : 1-10-574038Aview details
#N/S - HHT Hopper Lid Gasket - 5 Feet (1-00-375501)Price: $38.00Part : 1-00-375501view details
#N/S - Harman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)Price: $18.00Part : 3-44-677185view details
#10 - Harman Accentra52I Control Board Heat Shield (2-00-574082B)Price: $395.00Part : 2-00-574082Bview details
#11 - Harman Accentra52i Control Board Mounting Plate (1-10-574121)Price: $215.00Part : 1-10-574121view details
#N/S - Harman Circuit Board w/Knobs & Shafts (1-00-05886)Price: $289.00Part : 1-00-05886view details
#N/S - Harman & Heatilator Circuit Board D-Shape Knob and Shaft (1-00-015605)Price: $3.75Part : 1-00-015605view details
#N/S - Harman Control Board Label (3-90-07766)Price: $12.00Part : 3-90-07766view details
#N/S - Harman 5 Amp Ceramic Fuses - 5 Pack (3-20-23705-5)Price: $38.00Part : 3-20-23705-5view details
#12 - Harman Accentra 52i Medallion Holder (1-10-574098W)Price: $92.00Part : 1-10-574098Wview details
#13 - Harman Accentra52i/-TC Cast Center Medallion (3-00-584027)Price: $58.00Part : 3-00-584027view details
#15 - Harman Accentra52i/-TC Ash Pan (1-10-574007A)Price: $296.00Part : 1-10-574007Aview details
#16a - Harman Accentra 52i Center Wing with Hardware (4-00-574323P)Price: $369.00Part : 4-00-574323Pview details
#16b - Harman Center Wing Cast - Majolica Brown (1-10-574323-14)Price: $1154.00Part : 1-10-574323-14view details
#17a - Harman Accentra52i Hopper Lid (4-00-574320P)Price: $419.00Part : 4-00-574320Pview details
#17b - Harman Cast Hopper Lid - Majolica Brown (1-10-574320-14)Price: $995.00Part : 1-10-574320-14view details
#N/S - Harman Accentra52i Hopper Lid Hinges (1-00-574324)Price: $131.00Part : 1-00-574324view details
#N/S - Accentra 52i Hopper Lid Latch Kit (1-00-574345)Price: $184.00Part : 1-00-574345view details
#18a - Harman Accentra 52i Cast Top with Gasket (4-00-574319P)Price: $815.00Part : 4-00-574319Pview details
#18b - Harman Accentra52i 14" Cast Top with Gasket - Majolica Brown (1-10-574319-14)Price: $1691.00Part : 1-10-574319-14view details
#19a - Harman Accentra52i & Accentra52i-TC Left Cast Wing (4-00-574321P)Price: $469.00Part : 4-00-574321Pview details
#19b - Harman Left Wing Cast - Majolica Brown (1-10-574321-14)Price: $1111.00Part : 1-10-574321-14view details
#20a - Harman Door W/ Gasket - Black (4-00-674053A)Price: $721.00Part : 4-00-674053Aview details
#20b - Harman XXV Door (4-00-674053-14A)Price: $1286.00Part : 4-00-674053-14Aview details
#N/S - Harman Painted Front Door Latch (3-00-249119P)Price: $38.00Part : 3-00-249119Pview details
#N/S - Harman Door Glass with Gasket (1-00-677000)Price: $329.00Part : 1-00-677000view details
#N/S - Harman Glass Clips - 4 Pack (1-00-249140)Price: $66.00Part : 1-00-249140view details
#N/S - Vermont Castings & Harman Glass Gasket (1-00-1186258229)Price: $19.00Part : 1-00-1186258229view details
#N/S - HHT Door Rope Gasket - 30 Feet (1-00-00888)Price: $48.00Part : 1-00-00888view details
#N/S - Harman Latch Trim Plate (2-00-674206P)Price: $80.00Part : 2-00-674206Pview details
#DOORHANDLE - Harman & Vermont Castings Wooden Door Handle - Set of 2 (1-00-00247)Price: $26.00Part : 1-00-00247view details
#N/S - Harman Door Latch Roller Hardware (1-00-05230)Price: $42.00Part : 1-00-05230view details
#21a - Harman Cast Bottom Ash Lip - Black (3-00-574318P)Price: $405.00Part : 3-00-574318Pview details
#21b - Harman Accentra52i/-TC Cast Bottom Ashlip - Majolica Brown (1-10-574318-14)Price: $1547.00Part : 1-10-574318-14view details
#N/S - Harman Accentra Insert & 52i Magnetic Latch Assembly - 2 Sets (1-00-08288)Price: $28.00Part : 1-00-08288view details
#22a - Harman Accentra Insert & Accentra52i Cast Side Panel (4-00-674054P)Price: $287.00Part : 4-00-674054Pview details
#22b - Harman Accentra52i-TC Cast Side Panel - Majolica Brown (1-10-574054-14)Price: $792.00Part : 1-10-574054-14view details
#23a - Harman Accentra 52i Right Wing with Hardware (4-00-574322P)Price: $459.00Part : 4-00-574322Pview details
#23b - Harman Right Wing Cast - Majolica Brown (1-10-574322-14)Price: $934.00Part : 1-10-574322-14view details
#24 - Harman Burn Pot Weldment (1-00-574605)Price: $373.00Part : 1-00-574605view details
#N/S - Genuine Harman 16 Fin 306 Watt Pellet Stove Igniter (3-20-677200)Price: $117.00Part : 3-20-677200view details
#N/S - HHT Burn Pot Cleanout Cover with Wingscrews (1-00-06623)Price: $22.00Part : 1-00-06623view details
#N/S - Harman & Heatilator Wingscrew 1/4-20 X 5/8 - 2 Pack (3-31-782108)Price: $6.50Part : 3-31-782108view details
#N/S - Harman Ceramic Fiber Insert Plate Gasket (3-44-237639)Price: $9.00Part : 3-44-237639view details
#25 - Harman and Heatilator Eco-Choice Flame Guide (3-00-03000)Price: $47.00Part : 3-00-03000view details
#26 - Harman Accentra52i/-TC Cleanout Plate Assembly (1-00-574086)Price: $152.00Part : 1-00-574086view details
#N/S - Harman Tadpole Gasket 1 1/2" x 3/8" (1-00-10050)Price: $18.00Part : 1-00-10050view details
#27 - Harman Combustion Cover Latch Assembly (1-00-574080)Price: $98.00Part : 1-00-574080view details
#28 - Harman Accentra 52i/-TC Combustion Cover (1-10-574087A)Price: $311.00Part : 1-10-574087Aview details
#29 - Harman Hinge Plate (3-00-674047)Price: $20.00Part : 3-00-674047view details
#30 - Harman Combustion Blower Motor (3-21-08639)Price: $209.00Part : 3-21-08639view details
#31 - HHT Exhaust Blower 5" Double-Paddle Fan Blade (3-20-502221)Price: $23.00Part : 3-20-502221view details
#N/S - HHT Combustion Blower Mounting Screws - 4 Pack (1-00-53483208)Price: $4.50Part : 1-00-53483208view details
#32 - Harman & Heatilator Spring Latches with Hardware - 2 Pack (1-00-00927)Price: $69.00Part : 1-00-00927view details
#33 - Harman Burn Pot & Tailpipe Gasket Set (1-00-07381)Price: $8.50Part : 1-00-07381view details
#34 - Harman Distribution Blower (3-21-33647)Price: $279.00Part : 3-21-33647view details
#N/S - Harman & Heatilator Eco-Choice Arrow Burn Pot Scraper (2-00-773850)Price: $11.00Part : 2-00-773850view details
#N/S - Harman Diagnostic Display Module (3-20-05401)Price: $926.00Part : 3-20-05401view details
#N/S - Harman Digital Diagnostic Meter (DDM) Replacement Cable Kit (1-00-05402)Price: $140.00Part : 1-00-05402view details
#N/S - Harman Draft Meter Assembly (1-00-00637)Price: $1343.00Part : 1-00-00637view details
#N/S - Harman Draft Meter Bolt and Tube (1-00-04004)Price: $25.00Part : 1-00-04004view details
#N/S - Harman 14' Power Cord (3-20-674200)Price: $44.00Part : 3-20-674200view details
#N/S - Harman Room Air Sensor (3-20-00906)Price: $33.00Part : 3-20-00906view details
#N/S - Harman 14' Room Sensor Cord (3-20-674101)Price: $39.00Part : 3-20-674101view details
#N/S - Harman Thermister Probe - ESP Probe Red Wires (3-20-00844)Price: $95.00Part : 3-20-00844view details
#N/S - Harman, Heat N Glo & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)Price: $23.00Part : 3-42-19905view details
#N/S - HHT Touch Up Paint - Majolica Brown (1-00-0014)Price: $29.00Part : 1-00-0014view details
#N/S - Harman Wire Harness (3-20-08727)Price: $65.00Part : 3-20-08727view details
#N/S - Harman DK Blue Pigtail (3-20-574122)Price: $9.00Part : 3-20-574122view details
#N/S - Harman Sky Blue Pigtail (3-20-574123)Price: $9.00Part : 3-20-574123view details
#N/S - Harman Accentra52i Hardware Pack (1-00-574439)Price: $52.00Part : 1-00-574439view details
#N/S - Harman Accentra52i-TC Smoke Shield with Hardware (1-00-574430)Price: $166.00Part : 1-00-574430view details
