CD4842R, CD4842LR Parts Diagram
Heatilator CD4842R, CD4842LR Interactive Parts Finder

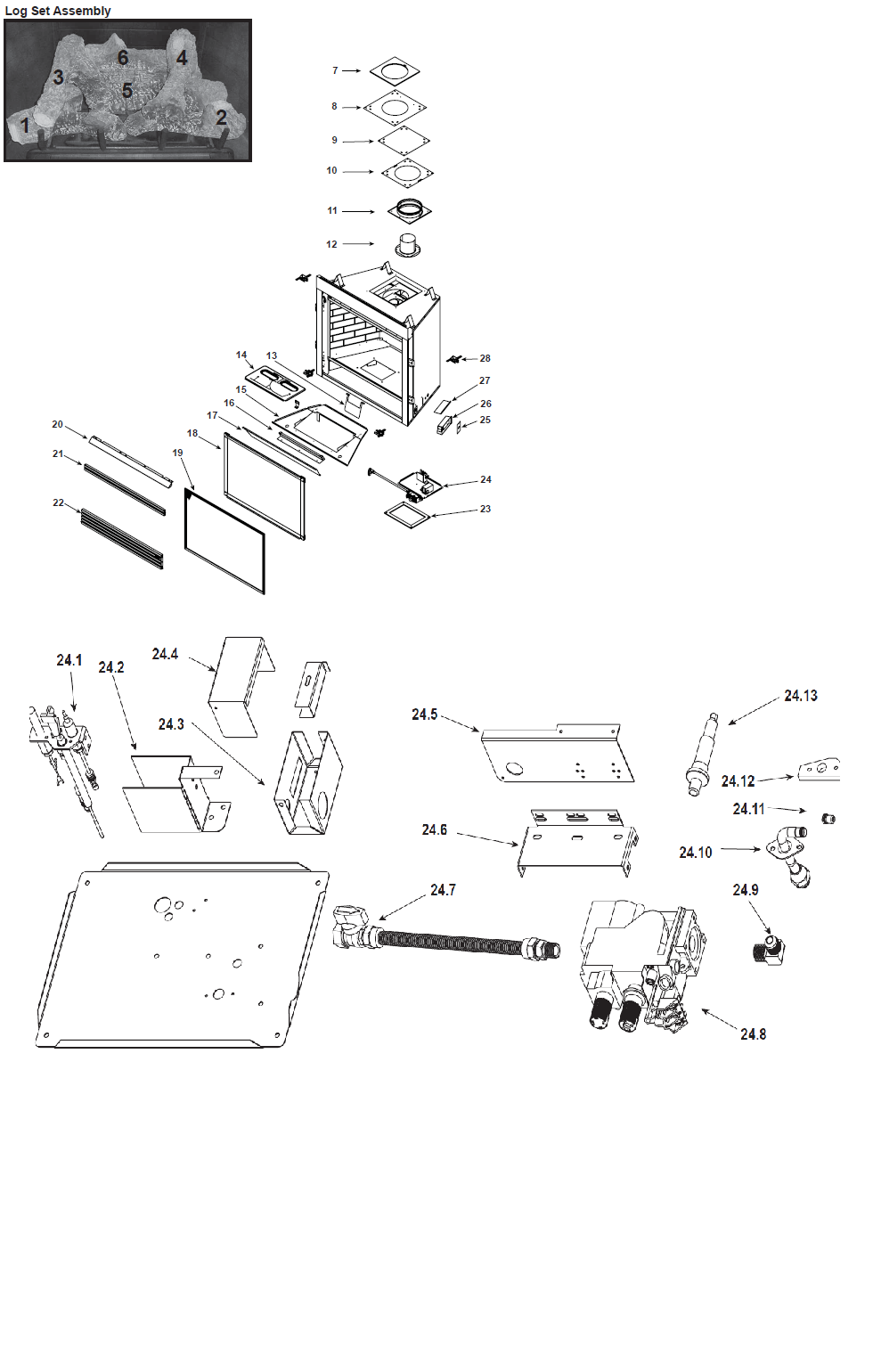

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.
.
| #LOG ASSY - Heatilator Log Assembly (4040-052) | Price: $719.00 | Part : 4040-052 | view details |
| #8 - Heatilator Flue Adaptor Plate (25882) | Price: $9.00 | Part : 25882 | view details |
| #10 - Heatilator Caliber & Novus Flue Adapter Plate (4000-226) | Price: $11.00 | Part : 4000-226 | view details |
| #11 - Heatilator Intake Collar Assembly (4040-041) | Price: $11.00 | Part : 4040-041 | view details |
| #12 - Heatilator Exhaust Collar Assembly (4040-042) | Price: $11.00 | Part : 4040-042 | view details |
| #13 - Heatilator Flue Baffle (4040-193) | Price: $9.00 | Part : 4040-197 | view details |
| #14 - Heatilator Burner Pan Assembly (4040-093) | Price: $339.00 | Part : 4040-093 | view details |
| #15 - Heatilator Caliber Hearth Pan (4040-256) | Price: $48.00 | Part : 4040-256 | view details |
| #16 - Heatilator Caliber Burner Support (4040-259) | Price: $13.00 | Part : 4040-259 | view details |
| #17 - Heatilator Glass Heat Shield (4040-154) | Price: $15.00 | Part : 4040-154 | view details |
| #18 - Heatilator Glass Assembly with Frame (4040-088) | Price: $628.00 | Part : 4040-088 | view details |
| #19 - Heatilator Caliber Series Screen Assembly (4040-032) | Price: $117.00 | Part : 4040-032 | view details |
| #21 - Heatilator Caliber & Novus Series 42" Upper Grille Assembly (4031-083) | Price: $135.00 | Part : 4031-083 | view details |
| #22 - Heatilator 42" Lower Grill Assembly (25144) | Price: $115.00 | Part : 25144 | view details |
| #23 - Heatilator Valve Plate Gasket (4040-198) | Price: $10.00 | Part : 4040-198 | view details |
| #24.1a - Heatilator Pilot Assembly - NG (4021-732) | Price: $130.00 | Part : 4021-732 | view details |
| #24.1b - Heatilator Pilot Assembly - NG (4021-330) | Price: $116.00 | Part : 4021-330 | view details |
| #24.1c - Heatilator & Heat N Glo Pilot Assembly - LP (4021-733) | Price: $134.00 | Part : 4021-733 | view details |
| #24.1d - Heatilator Pilot Assembly - LP (4021-329) | Price: $102.00 | Part : 4021-329 | view details |
| #24.2a - Heatilator Caliber Pilot Bracket (4040-273) | Price: $12.00 | Part : 4040-273 | view details |
| #24.2b - Heatilator Pilot Bracket (4047-126) | Price: $12.00 | Part : 4047-126 | view details |
| #24.3 - Heatilator Shutter Box Bottom (4040-189) | Price: $11.00 | Part : 4040-189 | view details |
| #24.4 - Heatilator Shutter Box Top (4040-190) | Price: $8.00 | Part : 4040-190 | view details |
| #24.5 - Heatilator Upper Valve Bracket (4040-193) | Price: $8.00 | Part : 4040-193 | view details |
| #24.6b - Heatilator Caliber & Novus Series SIT Valve Bracket (30060) | Price: $9.00 | Part : 30060 | view details |
| #24.9 - HHT Brass Connector - 3/8 Flare x 3/8 NPT Male Elbow (SRV4021-045) | Price: $22.00 | Part : SRV4021-045 | view details |
| #24.11a - Heatilator Threaded NG Orifice - .109 (SRV4021-061) | Price: $20.00 | Part : SRV4021-061 | view details |
| #24.11b - Heatilator Caliber Series Threaded LP Orifice - .067 (SRV4021-198) | Price: $20.00 | Part : SRV4021-198 | view details |
| #24.12 - Heatilator Bulkhead Insulation / Gasket (4021-043) | Price: $10.00 | Part : 4021-043 | view details |
| #24.13 - HHT Piezo Igniter w/Black Push Knob (291-513) | Price: $14.00 | Part : 291-513 | view details |
| #25 - HHT Junction Box Cover Plate (SRV4031-222) | Price: $42.00 | Part : SRV4031-222 | view details |
| #26 - HHT Junction Box (SRV4021-013) | Price: $35.00 | Part : SRV4021-013 | view details |
| #27 - Heatilator Junction Box Radiation Shield (4031-193) | Price: $8.00 | Part : 4031-193 | view details |
| #28 - HHT Glass Latch Assembly (33858/2) | Price: $53.00 | Part : 33858/2 | view details |
| #N/S - Heatilator Top Log Assembly (4040-038) | Price: $299.00 | Part : 4040-038 | view details |
| #N/S - Heatilator Gas Exhaust Cover Plate (25840) | Price: $8.00 | Part : 25840 | view details |
| #N/S - Heatilator Gas Intake Cover Plate (25844) | Price: $13.00 | Part : 25844 | view details |
| #N/S - Heatilator Screen Bracket (SRV28159) | Price: $9.00 | Part : SRV28159 | view details |
| #N/S - HHT Mineral Wool (SRV14333) | Price: $15.00 | Part : SRV14333 | view details |
| #N/S - HHT Vermiculite Bag (28746) | Price: $6.00 | Part : 28746 | view details |
| #N/S - Heatilator Conversion Kit - NG (CKVN) | Price: $240.00 | Part : CKVN | view details |
| #N/S - Heatilator Conversion Kit - LP (CKVP) | Price: $282.00 | Part : CKVP | view details |
| #N/S - Heatilator Caliber Installation Instructions (4040-224) | Price: $13.00 | Part : 4040-224 | view details |
