Euromax (serial # 327-891) Parts Diagram

Euromax (Serial #327-891) Interactive Parts Finder

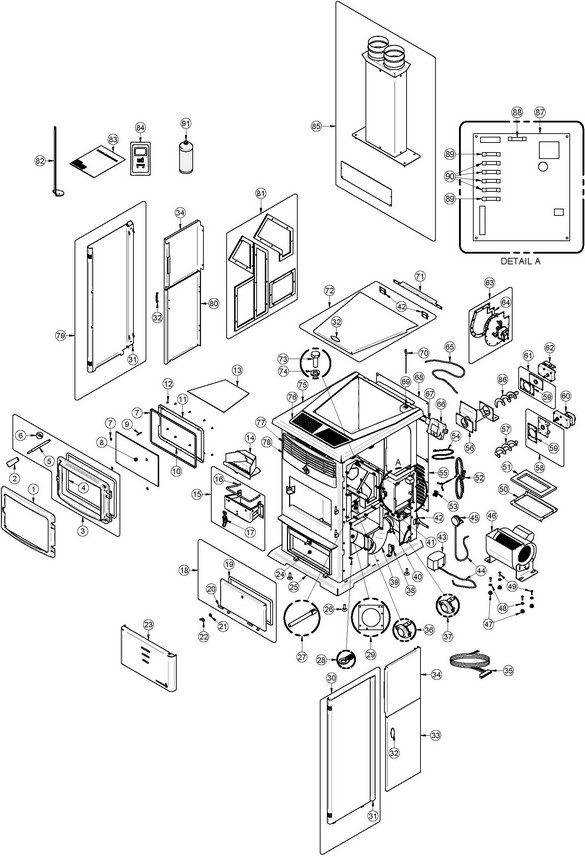

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.

EUROMAX PELLET Serial #327-891

.

#1 - Black Cast Iron Door Overlay (AC01220)Price: $100.00Part : AC01220view details
#2 - SBI Round Wooden Black Handle (30569)Price: $15.00Part : 30569view details
#3 - Enerzone Door Assembly (SE24179-01)Price: $225.00Part : SE24179-01view details
#4 - SBI Door Rope Gasket Kit (AC06000)Price: $20.00Part : AC06000view details
#6 - SBI Door Latch Kit (AC09185)Price: $36.00Part : AC09185view details
#7 - Drolet, Enerzone & Osburn 3/8" Gasket (AC06810)Price: $15.00Part : AC06810view details
#8 - Glass for Enerzone Eurostar & Euromax (PL62418)Price: $130.00Part : PL62418view details
#9 - SBI Spring Tension Pin (30101)Price: $4.00Part : 30101view details
#13 - Drolet Eco-65 & Enerzone Euromax Baffle (PL62412)Price: $36.00Part : PL62412view details
#14 - Drolet & Enerzone Combustion Pot Assembly (SE62254)Price: $89.00Part : SE62254view details
#16 - Osburn, Drolet, Enerzone & PSG Rope Gasket (AC06300)Price: $35.00Part : AC06300view details
#17 - SBI Fire Pot Latch (30686)Price: $45.00Part : 30686view details
#18 - Drolet & Enerzone Ash Drawer Access Door (SE62325)Price: $85.00Part : SE62325view details
#19 - SBI Ash Door Gasket with Adhesive - 1/2" x 9' (AC06900)Price: $25.00Part : AC06900view details
#22 - Heatilator & Outdoor Lifestyles Air Kit w/Box (30416)Price: $215.00Part : 30416view details
#24 - Drolet & Enerzone Ash Drawer (SE62290)Price: $65.00Part : SE62290view details
#26 - SBI Leveling Bolts (30050)Price: $10.00Part : 30050view details
#27 - SBI Igniter Kit (SE30789)Price: $145.00Part : SE30789view details
#28 - SBI Spring Clip (30710)Price: $8.00Part : 30710view details
#29 - Drolet & Enerzone Fresh Air Intake Gasket (21345)Price: $10.00Part : 21345view details
#32 - Hopper Lid Handle for Osburn & Enerzone Pellet Stoves (30693)Price: $10.00Part : 30693view details
#36 - SBI Thermodisc 250 Degree Automatic Reset (44059)Price: $25.00Part : 44059view details
#37 - SBI Thermodisc 36T12 F160 Degree (44058)Price: $20.00Part : 44058view details
#38 - SBI Double Magnet (30454)Price: $9.00Part : 30454view details
#40 - SBI 3" to 4" Stainless Steel Collar (49400)Price: $10.00Part : 49400view details
#41 - SBI Combustion Blower (44104)Price: $185.00Part : 44104view details
#42 - SBI Hinge - 2" x 1-1/2" (30013)Price: $8.00Part : 30013view details
#43 - Drolet & Enerzone Air Pump Assembly (SE60047)Price: $250.00Part : SE60047view details
#44 - Drolet & Enerzone Silicone Air Pump Hose (49606)Price: $25.00Part : 49606view details
#45 - SBI Pressure Switch (44029)Price: $50.00Part : 44029view details
#46 - Drolet & Enerzone Convection Blower (44108)Price: $575.00Part : 44108view details
#47 - SBI Blower Anti-Vibration Cushion (30335)Price: $6.00Part : 30335view details
#49 - Enviro Windsor Touch-Up Paint - Inferno Red (30-024)Price: $35.30Part : 30-024view details
#50 - Drolet & Enerzone Convection Blower Wool Retainer (PL62308)Price: $10.00Part : PL62308view details
#51 - Drolet & Enerzone Convection Blower Wool Seal (21350)Price: $10.00Part : 21350view details
#52 - SBI 8' Power Cord Replacement (60013)Price: $15.00Part : 60013view details
#53 - SBI Thermostat Terminal (60036)Price: $10.00Part : 60036view details
#54 - SBI Junction Wire - Control Board to LCD (60327)Price: $40.00Part : 60327view details
#56 - Drolet & Enerzone Primary Chute Gasket (21195)Price: $7.00Part : 21195view details
#57 - Drolet & Enerzone Auger Shaft (24031)Price: $95.00Part : 24031view details
#58 - SBI Gear Motor Support Assembly (SE24233)Price: $115.00Part : SE24233view details
#59 - SBI Auger Support Insulation (21193)Price: $8.00Part : 21193view details
#61 - Hopper Auger Support for Osburn, Drolet & Enerzone Pellet Stoves (SE64319)Price: $30.00Part : SE64319view details
#62 - SBI Auger Motor (44106)Price: $200.00Part : 44106view details
#63 - Drolet & Enerzone Exhaust Fan Assembly (SE62293)Price: $325.00Part : SE62293view details
#64 - Drolet & Enerzone Exhaust Blower Gasket (21194)Price: $10.00Part : 21194view details
#65 - SBI Junction Wire - Control Board to LCD (60327)Price: $40.00Part : 60327view details
#67 - Enerzone & Osburn LCD Bracket (SE62421)Price: $65.00Part : SE62421view details
#68 - Drolet & Enerzone Upper Rear Panel (PL62349)Price: $20.00Part : PL62349view details
#69 - SBI Hopper Lid Safety Switch (44098)Price: $15.00Part : 44098view details
#70 - SBI Thermistor Assembly (SE44095)Price: $45.00Part : SE44095view details
#85 - Drolet & Enerzone Hot Air Plenum Kit - 4" x 10" (AC01330)Price: $130.00Part : AC01330view details
#86 - SBI Auger Shaft (24030)Price: $70.00Part : 24030view details
#87 - Drolet, Enerzone & Osburn 6 Output Mother Board (PL64357)Price: $305.00Part : PL64357view details
#88 - SBI 7.5 Amp Fuse for Pellet Stoves (44013)Price: $6.00Part : 44013view details
#89 - SBI 5 Amp Fuse for Pellet Stoves (44015)Price: $6.00Part : 44015view details
#90 - SBI 3 Amp Fuse - Long (44016)Price: $6.00Part : 44016view details
