GDCH60iV, GDCH60LiV Parts Diagram

Heatilator GDCH60iV, GDCH60LiV Interactive Parts Finder

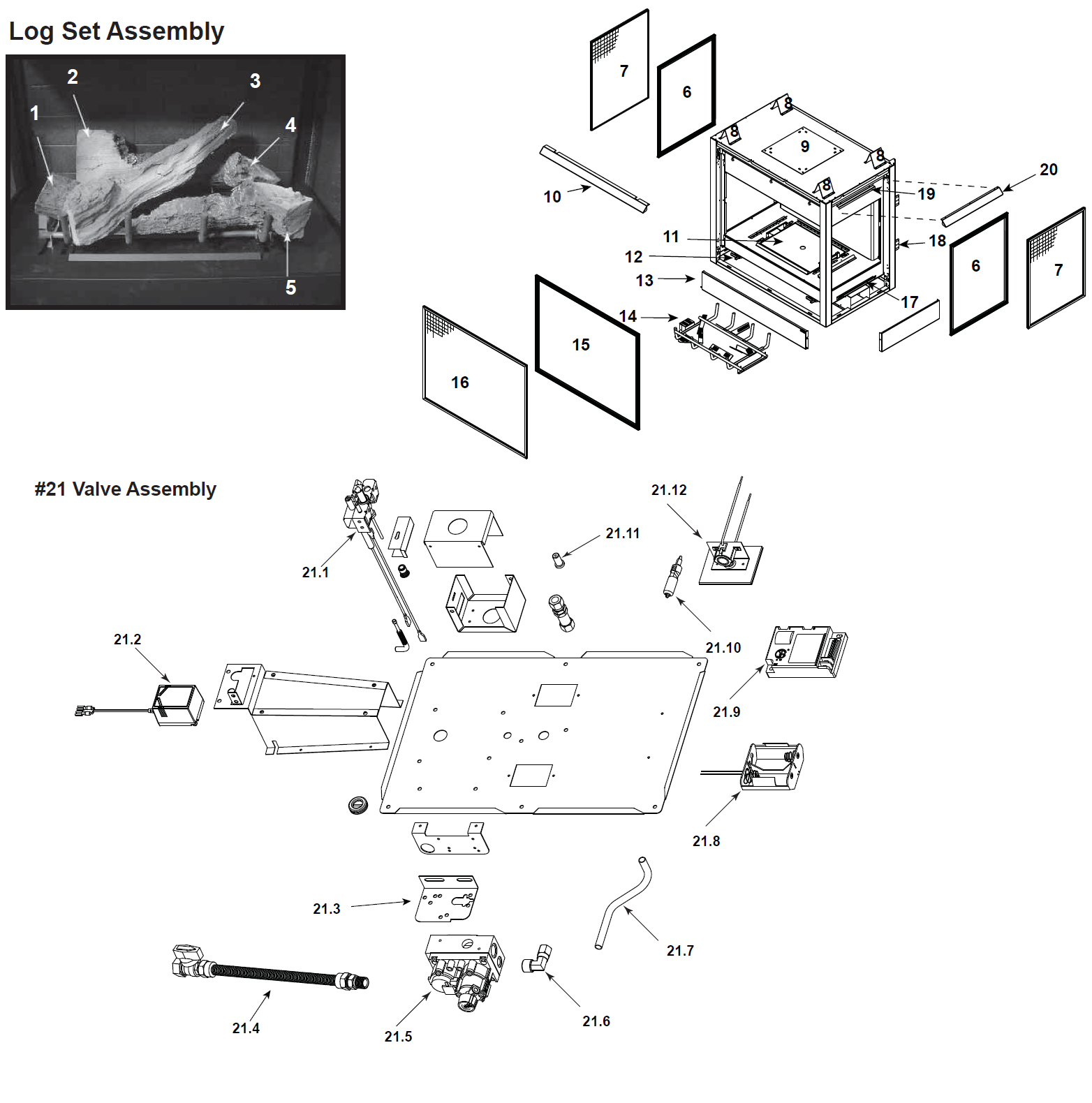

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.

Heatilator GDCH60iV, GDCH60LiV

.

#LOG ASSY - Heatilator Log & Grate Assembly (35595)Price: $749.00Part : 35595view details
#LOG ASSY 2 - Heatilator 40" Caliber Series Log Assembly (35596)Price: $579.00Part : 35596view details
#1 - Heatilator Log #1 (SRV33785)Price: $203.00Part : SRV33785view details
#2 - Heatilator Rear Log - Left (SRV35592)Price: $239.00Part : SRV35592view details
#3 - Heatilator Log #3 (SRV35590)Price: $227.00Part : SRV35590view details
#4 - Heatilator Log #4 (SRV33782)Price: $203.00Part : SRV33782view details
#5 - Heatilator Log #5 (SRV35591)Price: $203.00Part : SRV35591view details
#6 - Heatilator Caliber End Glass & Frame Assembly (SRV4002-045) Price: $599.00Part : SRV4002-045view details
#7 - Heatilator End Screen Assembly (29693)Price: $107.00Part : 29693view details
#8 - HHT Top Standoff (SRV4044-111)Price: $11.00Part : SRV4044-111view details
#9 - Heatilator Caliber Series Cover Plate (4002-042)Price: $54.00Part : 4002-042view details
#10a - Heatilator Front Hood (27658)Price: $61.00Part : 27658view details
#11a - Heatilator Glass Latch Assembly (30537)Price: $65.00Part : 30537view details
#11b - HHT Glass Latch Assembly (33858/2)Price: $53.00Part : 33858/2view details
#12 - Heatilator Solid Light Plate (33927)Price: $6.00Part : 33927view details
#13 - Heatilator Control Access Door (25893)Price: $97.00Part : 25893view details
#14 - Heatilator 40" Caliber Series Grate Assembly (35594)Price: $154.00Part : 35594view details
#15 - Heatilator Glass Assembly with Frame (4002-053)Price: $555.00Part : 4002-053view details
#16 - Heatilator Face Screen Assembly (26161)Price: $146.00Part : 26161view details
#17 - Heatilator Caliber Series Side Glass Retainer (4002-044)Price: $124.00Part : 4002-044view details
#19 - Heatilator Caliber Series End Glass Retainer (4002-043)Price: $133.00Part : 4002-043view details
#20 - Heatilator Side Hood (27659)Price: $69.00Part : 27659view details
#21.1 - Heatilator IPI Pilot Assembly - NG (4021-584)Price: $118.00Part : 4021-584view details
#21.10 - HHT Halogen Bulb (33961)Price: $25.00Part : 33961view details
#21.11 - Heatilator Burner Orifice - NG (SRV17235)Price: $19.00Part : SRV17235view details
#21.2 - HHT 3V Transformer (SRV593-593)Price: $26.00Part : SRV593-593view details
#21.4 - HHT Flex Ball Valve Assembly - 12" (SRV302-320)Price: $49.00Part : SRV302-320view details
#21.5 - HHT IPI Gas Valve - NG (750-500)Price: $125.00Part : 750-500view details
#21.7 - Heatilator Burner Supply Tube - 3/8" (33619)Price: $11.00Part : 33619view details
#21.8 - HHT Battery Pack (SRV593-594)Price: $14.00Part : SRV593-594view details
#N/S - Heatilator Caliber Series Back Gasket (4002-038)Price: $14.00Part : 4002-038view details
#N/S - Heatilator Burner Neck Gasket (17196)Price: $4.00Part : 17196view details
#N/S - Heatilator Caliber Series Burner Pan Assembly (33970)Price: $319.00Part : 33970view details
#N/S - Heatilator Caliber Series Exhaust Collar Assembly (4002-004)Price: $12.00Part : 4002-004view details
#N/S - Heatilator Exhaust Gasket (31238)Price: $12.00Part : 31238view details
#N/S - Heatilator Flue Adaptor Plate (25882)Price: $9.00Part : 25882view details
#N/S - HHT Gas Access Panel (31636)Price: $122.00Part : 31636view details
#N/S - Heatilator Glass Latch Handle (4002-061)Price: $15.00Part : 4002-061view details
#N/S - Heatilator & Heat N Glo Intake Collar Assembly (4002-002)Price: $213.00Part : 4002-002view details
#N/S - Heatilator Junction Box Kit (31581)Price: $33.00Part : 31581view details
#N/S - Heatilator Lower Face (25913)Price: $100.00Part : 25913view details
#N/S - Heatilator Caliber Series Pilot Bracket - NG (4002-037)Price: $18.00Part : 4002-037view details
#N/S - Heatilator Screen Bracket (SRV28159)Price: $9.00Part : SRV28159view details
#N/S - Heatilator Valve / Seal Plate Gasket (4002-039)Price: $12.00Part : 4002-039view details
#N/S - HHT Thermostat Wire (SRV2118-170)Price: $26.00Part : SRV2118-170view details
#N/S - HHT Wire Assembly (SRV593-590)Price: $28.00Part : SRV593-590view details
#N/S - HHT Mineral Wool (SRV14333)Price: $15.00Part : SRV14333view details
#N/S - HHT Vermiculite Bag (28746)Price: $6.00Part : 28746view details
#N/S - Heatilator Conversion Kit - NG (DCKVN)Price: $309.00Part : DCKVNview details
#N/S - Heatilator Novus Series Conversion Kit - LP (DCKVP)Price: $324.00Part : DCKVPview details
