Gecko

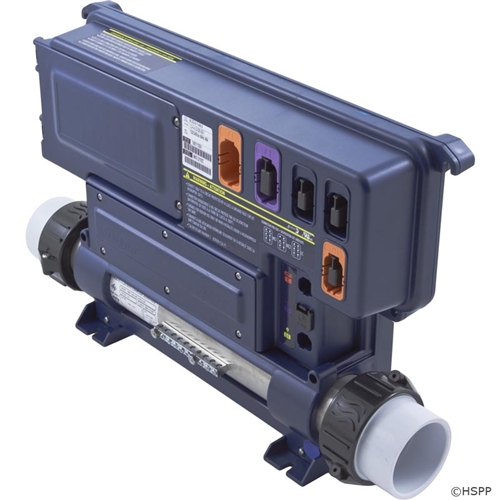

Gecko in.ex-5 Control Box (0602-221022)
- SKU:
- 0602-221022
- MPN:
- 0602-221022
- Availability:
- Usually Ships in 1 to 2 Business Days
Description
Replacement Gecko spa control box. This part is the replacement box ONLY.
IN.XE-5-11-H4.0-1-2-B-O-D-32K-GD1
It includes the available circuits listed below:
- High Current Pump 1 circuit, 1 or 2 speed, 120v, 20A max
- High Current Pump 2 or HC Blower circuit, 1 speed, 120v or 240v, 20A max
- Two Low Current AC relay-controlled circuits for blower or ozonator, 120v or 240v, 5A max
- One Low Current AC direct power circuit for audio and/or visual accessories, 120v, 5A max
- WiFi compatible with additional WiFi module, sold separately
Features: 4.0kW heat.wav heater, 2" tailpieces x 15" length
Gecko Part # 0602-221022
Warranty
Two-Year manufacturer limited warranty. The warranty is void if the part is installed in a unit the part was not designed for.
