HB42AM Parts Diagram

Heatilator HB42AM Interactive Parts Finder

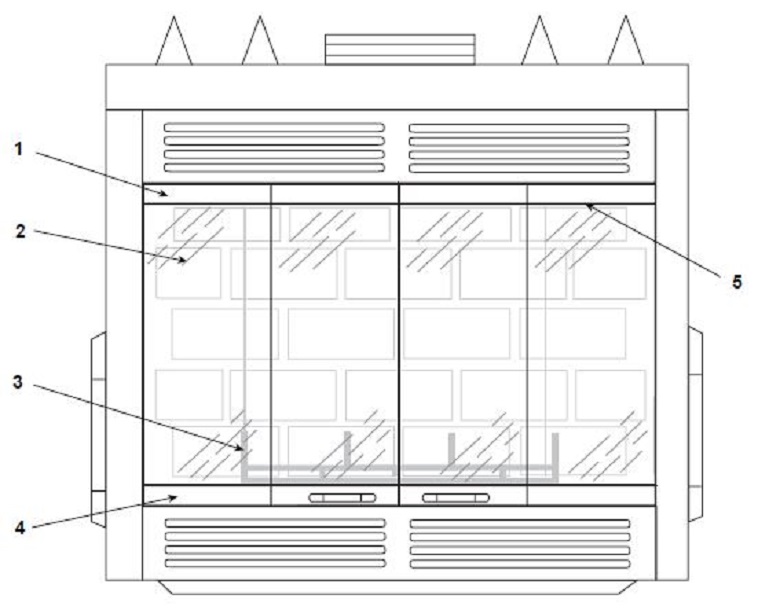

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.

Heatilator HB42AM Wood
#3 - HHT Grate Assembly (GR40)Price: $169.00Part : GR40view details
#N/S - Heatilator Firescreen Assembly (12048A)Price: $38.00Part : 12048Aview details
#N/S - Heat N Glo & Heatilator Firescreen Assembly (16765)Price: $92.00Part : 16765view details
#N/S - Heat N Glo & Heatilator Hairpin Clip - 24 Pack (101025/24)Price: $15.00Part : 101025/24view details
#N/S - Heatilator Side Refractory (16757)Price: $85.00Part : 16757view details
#N/S - Heatilator Back Refractory (12031A)Price: $253.00Part : 12031Aview details
#N/S - Heatilator Back Refractory - 42" Fireplace (16756A)Price: $121.00Part : 16756Aview details
#N/S - Heatilator HB42A Hearth Refractory (12033A)Price: $150.00Part : 12033Aview details
