Milan Parts Diagram
Milan Interactive Parts Finder

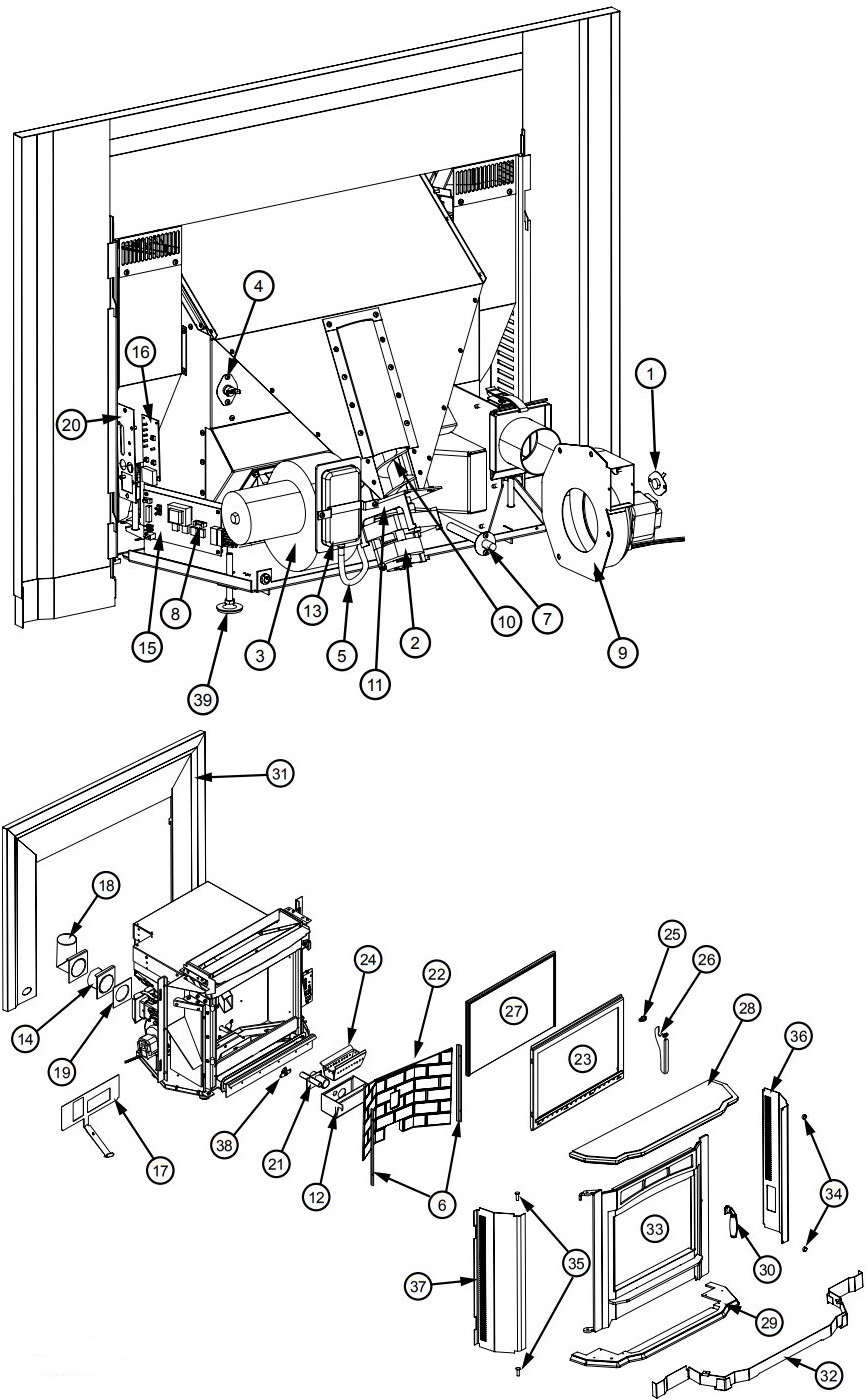

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.
| #1 - Enviro 120 Ceramic Fan Temp Sensor (EC-001) | Price: $109.00 | Part : EC-001 | view details |
| #N/S - Enviro 115V Power Cord (EC-042) | Price: $79.00 | Part : EC-042 | view details |
| #N/S - Enviro Heyco Strain Relief (EC-044) | Price: $81.00 | Part : EC-044 | view details |
| #2 - Enviro Auger Motor 115V - 1 RPM (EF-001) | Price: $218.00 | Part : EF-001 | view details |
| #3A - Enviro Convection Blower (EF4i-002) | Price: $425.00 | Part : EF4i-002 | view details |
| #3B - Enviro Convection Blower Impeller (EF-004) | Price: $117.00 | Part : EF-004 | view details |
| #3C - Enviro Convection Blower Gasket (EF-006) | Price: $81.00 | Part : EF-006 | view details |
| #4 - Enviro High Limit Switch - Manual Reset (EF-016) | Price: $98.00 | Part : EF-016 | view details |
| #5 - Enviro Silicone Vacuum Hose (EF-018) | Price: $50.00 | Part : EF-018 | view details |
| #N/S - Enviro Cleaning Brush (EF-156) | Price: $48.00 | Part : EF-156 | view details |
| #N/S - Enviro Auger Bushings - Set of 2 (50-1806) | Price: $106.00 | Part : 50-1806 | view details |
| #N/S - Enviro Low Density Door Rope Gasket (50-088) | Price: $84.00 | Part : 50-088 | view details |
| #6 - Enviro Brick Panel Retainer - Set of 2 (50-185) | Price: $92.00 | Part : 50-185 | view details |
| #7 - Enviro & Vista Flame 400W Igniter - 115V (50-619) | Price: $232.00 | Part : 50-619 | view details |
| #8 - Enviro & Vista Flame Circuit Board 5 Amp Fuse Set (50-833) | Price: $48.00 | Part : 50-833 | view details |
| #9A - Enviro Exhaust Blower Assembly (50-901) | Price: $437.00 | Part : 50-901 | view details |
| #9B - Enviro Combustion Blower Mounting Gasket (EF-011) | Price: $70.00 | Part : EF-011 | view details |
| #9C - Enviro Combustion Blower Housing Gasket (EF-012) | Price: $50.00 | Part : EF-012 | view details |
| #9D - Enviro Formed Exhaust Blower Housing - (50-1107) | Price: $144.00 | Part : 50-1107 | view details |
| #N/S - Enviro Auger Collar with Screw (50-968) | Price: $89.00 | Part : 50-968 | view details |
| #N/S - Enviro Burn Pot Scraper Tool (50-1254) | Price: $75.00 | Part : 50-1254 | view details |
| #10 - Enviro Auger Shaft (50-1346) | Price: $209.00 | Part : 50-1346 | view details |
| #11 - Enviro Auger Plate w/Bushing (50-1359) | Price: $142.00 | Part : 50-1359 | view details |
| #12 - Enviro Empress & Milan Burn Pot - 1.5" Intake Hole (50-1366) | Price: $159.00 | Part : 50-1366 | view details |
| #13 - Enviro Vacuum/Low Pressure Switch (50-1390) | Price: $170.00 | Part : 50-1390 | view details |
| #14 - Enviro Exhaust Starter Tube (50-1391) | Price: $92.00 | Part : 50-1391 | view details |
| #15 - Enviro Empress FPI & Milan Mother Board (50-2089) | Price: $509.00 | Part : 50-2089 | view details |
| #16 - Enviro Empress FPI & Milan Daughter Board (50-2090) | Price: $143.00 | Part : 50-2090 | view details |
| #17 - Enviro Slider Damper & Lever (50-1394) | Price: $87.00 | Part : 50-1394 | view details |
| #18 - Enviro Empress & Milan Exhaust 90 Degree Starter Elbow (50-1395) | Price: $105.00 | Part : 50-1395 | view details |
| #19 - Enviro Exhaust Starter Gasket (50-1396) | Price: $95.00 | Part : 50-1396 | view details |
| #20 - Enviro Empress FPI & Milan Control Panel w/Decal (50-2091) | Price: $106.00 | Part : 50-2091 | view details |
| #21 - Enviro Igniter & Intake Tube Assembly (50-1398) | Price: $123.00 | Part : 50-1398 | view details |
| #22 - Enviro Cast Brick Panel Set (50-1399) | Price: $191.00 | Part : 50-1399 | view details |
| #24 - Enviro Burn Pot Liner w/Sides (50-1401) | Price: $167.00 | Part : 50-1401 | view details |
| #25 - Enviro Chassis Door Bolt & Roll (50-1465) | Price: $78.00 | Part : 50-1465 | view details |
| #26 - Enviro Door Handle (50-1467) | Price: $84.00 | Part : 50-1467 | view details |
| #27 - Enviro Empress Glass w/Gasket (50-1468) | Price: $392.00 | Part : 50-1468 | view details |
| #N/S - Enviro Inner Door Hinge (50-1530) | Price: $103.00 | Part : 50-1530 | view details |
| #N/S - Enviro Empress FPI & Milan Wire Harness (50-1550) | Price: $309.00 | Part : 50-1550 | view details |
| #28 - Enviro Milan Cast Top (50-1720) | Price: $147.00 | Part : 50-1720 | view details |
| #29 - Enviro Milan Cast Bottom (50-1721) | Price: $122.00 | Part : 50-1721 | view details |
| #30 - Enviro Milan Cast Door Handle (50-1722) | Price: $76.00 | Part : 50-1722 | view details |
| #31 - Enviro Milan Surround Panel (50-1723) | Price: $450.00 | Part : 50-1723 | view details |
| #32 - Enviro Milan 2" Riser Skirt (50-1724) | Price: $151.80 | Part : 50-1724 | view details |
| #33 - Enviro Milan Outer Door (50-1725) | Price: $513.00 | Part : 50-1725 | view details |
| #34 - Enviro Milan Outer Door Magnet (50-1726) | Price: $63.00 | Part : 50-1726 | view details |
| #35 - Enviro Milan Outer Door Hinge Pin (50-1727) | Price: $49.00 | Part : 50-1727 | view details |
| #36 - Enviro Milan Side Grill Assembly - Right (50-1728) | Price: $152.00 | Part : 50-1728 | view details |
| #37 - Enviro Milan Side Grill Assembly - Left (50-1729) | Price: $152.00 | Part : 50-1729 | view details |
| #38 - Enviro Ash Pan Latch (50-1730) | Price: $104.00 | Part : 50-1730 | view details |
| #39 - Enviro 3" Leveling Legs - Set of 4 (50-1731) | Price: $85.00 | Part : 50-1731 | view details |
