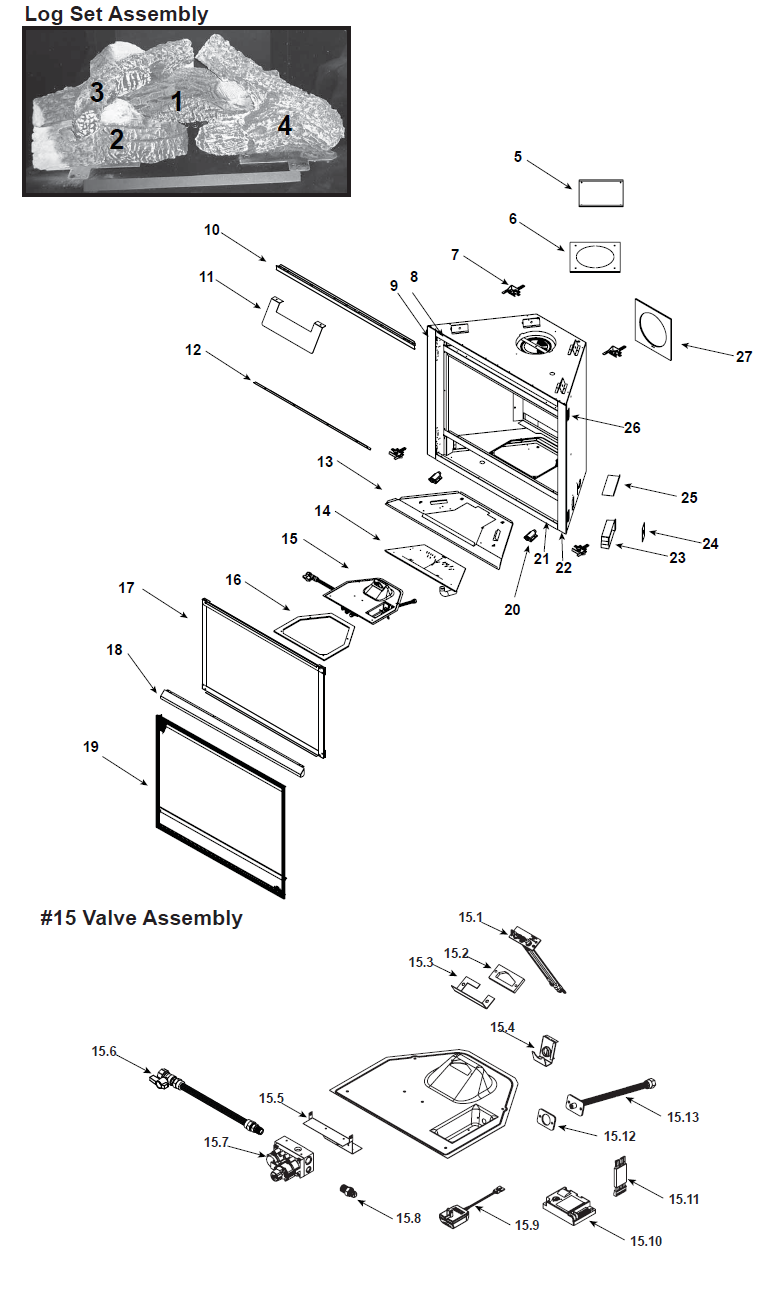

NDV4842I, NDV4842IL Parts Diagram
Heatilator NDV4842I, NDV4842IL Interactive Parts Finder
Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.
.
| #LOGSET - Heatilator 42" Novus Series Log Set Assembly (SRV4055-079) | Price: $359.00 | Part : SRV4055-079 | view details |
| #1 - Heatilator Novus Series Back Log (SRV4055-082) | Price: $203.00 | Part : SRV4055-082 | view details |
| #2 - Heatilator Novus Series Log - Left (SRV4055-086) | Price: $145.00 | Part : SRV4055-086 | view details |
| #3 - Heatilator Novus Series Top Log (SRV4055-083) | Price: $109.00 | Part : SRV4055-083 | view details |
| #4 - Heatilator Novus Series Log - Right (SRV4055-089) | Price: $121.00 | Part : SRV4055-089 | view details |
| #5A - Heatilator Gas Intake Cover Plate (25844) | Price: $13.00 | Part : 25844 | view details |
| #5B - Heatilator Intake Cover Plate (2166-450) | Price: $17.00 | Part : 2166-450 | view details |
| #6 - Heatilator Intake Cover Gasket (4031-239) | Price: $7.00 | Part : 4031-239 | view details |
| #7 - HHT Glass Latch Assembly (33858/2) | Price: $53.00 | Part : 33858/2 | view details |
| #10 - Heatilator Novus Series 42" Drywall Lip (4031-208) | Price: $15.00 | Part : 4031-208 | view details |
| #11 - Heatilator Novus Series Flue Visor (4055-148) | Price: $14.00 | Part : 4055-148 | view details |
| #12 - Heatilator 42" Glass Shield (4031-220) | Price: $18.00 | Part : 4031-220 | view details |
| #13 - Heatilator Novus Series 42" Hearth Pan (4055-112) | Price: $130.00 | Part : 4055-112 | view details |
| #14 - Heatilator Burner Assembly - LP/NG (4055-049) | Price: $199.00 | Part : 4055-049 | view details |
| #15.1A - HHT IPI Pilot Assembly - NG (SRV2090-012) | Price: $53.00 | Part : SRV2090-012 | view details |
| #15.1B - HHT IPI Pilot Assembly - LP (2090-013) | Price: $46.00 | Part : 2090-013 | view details |
| #15.2 - Heatilator & Heat N Glo Pilot Gasket (4021-042) | Price: $6.00 | Part : 4021-042 | view details |
| #15.3 - Heatilator Novus Series Pilot Bracket (4065-182) | Price: $12.00 | Part : 4065-182 | view details |
| #15.4 - Heatilator Novus Series Air Shutter Assembly (SRV4055-202) | Price: $12.00 | Part : SRV4055-202 | view details |
| #15.5 - Heatilator Valve Bracket (4055-205) | Price: $6.00 | Part : 4055-205 | view details |
| #15.6 - HHT Flex Ball Valve Assembly - 12" (SRV302-320) | Price: $49.00 | Part : SRV302-320 | view details |
| #15.7A - HHT IPI Gas Valve - NG (750-500) | Price: $125.00 | Part : 750-500 | view details |
| #15.7B - HHT IPI Gas Valve - LP (750-501) | Price: $131.00 | Part : 750-501 | view details |
| #15.11 - HHT Wire Assembly (SRV593-590) | Price: $28.00 | Part : SRV593-590 | view details |
| #15.12 - HHT Bulkhead Gasket (4021-429) | Price: $7.00 | Part : 4021-429 | view details |
| #15.13 - Heatilator & Heat N Glo Flexible Bulkhead (4021-512) | Price: $42.00 | Part : 4021-512 | view details |
| #15.8 - HHT Male Connector Fittings (303-315/5) | Price: $43.00 | Part : 303-315/5 | view details |
| #15.9 - HHT 3V Transformer (SRV593-593) | Price: $26.00 | Part : SRV593-593 | view details |
| #N/S - HHT Thermostat Wire (SRV2118-170) | Price: $26.00 | Part : SRV2118-170 | view details |
| #N/S - HHT Burner Orifice #37C NG (582-837) | Price: $7.00 | Part : 582-837 | view details |
| #N/S - Heatilator Novus Series Conversion Kit - NG (DCKVN-NOVUS) | Price: $198.00 | Part : DCKVN-NOVUS | view details |
| #N/S - Heatilator Novus Series Conversion Kit - LP (DCKVP-NOVUS) | Price: $109.00 | Part : DCKVP-NOVUS | view details |
| #N/S - HHT Pilot Orifice - NG (SRV593-528) | Price: $19.00 | Part : SRV593-528 | view details |
| #N/S - HHT Pilot Orifice - LP (SRV593-527) | Price: $19.00 | Part : SRV593-527 | view details |
| #16 - Heatilator Valve Plate Gasket (4055-135) | Price: $10.00 | Part : 4055-135 | view details |
| #17 - Heatilator Glass Assembly with Frame (GLA4031-096) | Price: $486.00 | Part : GLA4031-096 | view details |
| #18 - Heatilator Novus 42" Hood (4055-216) | Price: $23.00 | Part : 4055-216 | view details |
| #20 - Heatilator Magnetic Touch Latch (4021-650) | Price: $6.00 | Part : 4021-650 | view details |
| #23 - HHT Junction Box (SRV4021-013) | Price: $35.00 | Part : SRV4021-013 | view details |
| #24 - HHT Junction Box Cover Plate (SRV4031-222) | Price: $42.00 | Part : SRV4031-222 | view details |
| #25 - Heatilator Junction Box Radiation Shield (4031-193) | Price: $8.00 | Part : 4031-193 | view details |
| #26 - HHT Nailing Flange (SRV4044-161) | Price: $10.00 | Part : SRV4044-161 | view details |
| #N/S - HHT Touch Up Paint - Black Gloss (71479) | Price: $29.00 | Part : 71479 | view details |
| #N/S - HHT Touch Up Paint - Black (TUP-GBK-12) | Price: $30.00 | Part : TUP-GBK-12 | view details |
| #N/S - HHT Battery Pack (SRV593-594) | Price: $14.00 | Part : SRV593-594 | view details |
| #N/S - Pack of 25 HHT Thumb Screws (4021-558/25) | Price: $34.00 | Part : 4021-558/25 | view details |
| #N/S - HHT Lava Rock Bag (4021-297) | Price: $18.00 | Part : 4021-297 | view details |
| #N/S - HHT Mineral Wool (SRV14333) | Price: $15.00 | Part : SRV14333 | view details |
| #N/S - HHT Vermiculite Bag (28746) | Price: $6.00 | Part : 28746 | view details |
