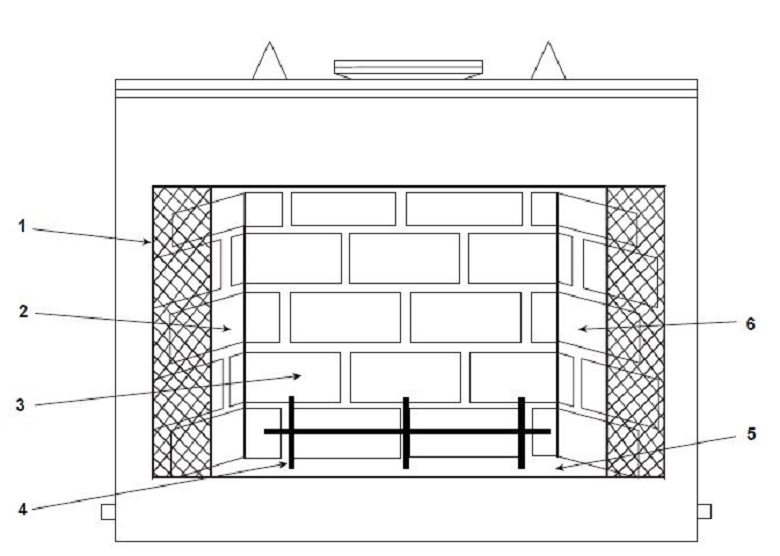

TD42A Parts Diagram

Heatilator TD42A Interactive Parts Finder

Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.

Heatilator TD42A Wood
#2 - Heatilator Left Side Refractory (10831)Price: $124.00Part : 10831view details
#3 - Heatilator TD42A & TD42B Back Refractory (10833)Price: $249.00Part : 10833view details
#4 - Heatilator & Heat N Glo Grate Assembly (GR9)Price: $193.00Part : GR9view details
#6 - Heatilator Right Side Refractory (11382)Price: $100.00Part : 11382view details
#N/S - Heat N Glo & Heatilator Firescreen Ring (11857B)Price: $3.00Part : 11857Bview details
#N/S - HHT Firescreen Rod (11755A)Price: $20.00Part : 11755Aview details
#N/S - Heat N Glo & Heatilator Hairpin Clip - 24 Pack (101025/24)Price: $15.00Part : 101025/24view details
