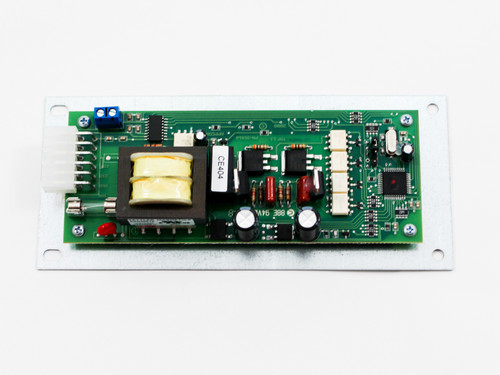

USSC Digital 1RPM Circuit Board (80684)

Replacement 1RPM circuit board for Breckwell and USSC pellet stoves. Fits the following models:

Notes:

1. 4 vs 5 SPEED: This board is used for both 4 speed and 5 speed systems. There is a jumper on the back of the board that will need to be connected to pins 1 & 2 for a 5 speed set up and pins 2 & 3 for a 4 speed set up.


2. FACEPLATE: Faceplate decal is NOT included. The 4 speed decal is part # C-L-101, available HERE. The 5 speed decal is part # 852266, available HERE.


3. 1 vs 4 RPM: Serial numbers may be off. If your model has a serial number next to it and you are unsure if you have a 1 RPM or 4 RPM feed system then we recommend double checking the spacing on your auger shaft. 1 RPM auger shafts will have 2" spaced spirlaing. 4 RPM auger shafts will have 1" spaced spiraling. The 4 RPM board is part # A-E-301, available HERE.


4. ANALOG UPGRADE: Analog boards are NLA. To switch to a digital board for a 1 RPM system you will need this board, a faceplate, and a new wireharness (part # 80675, available HERE). Please contact us for upgrade/wiring instrctions. If you need to upgrade a 4 RPM board, the part # is A-E-950KIT, available HERE. The opening on the side of the stove for the circuit board may need to be enlarged.



Ashley Pellet Stoves:

• APC4000

Breckwell Pellet Stoves:

• P22
• P22I Maverick Insert
• P4000 Classic Cast
• P23 - Serial # 7166 to Present
• P23I - Serial # 2243 to Present
• P24 - Serial # 53664 to Present
• P24I - Serial # 53795 to Present
• P1000 (Big E) - All Units
• P2000 - Serial # 11780 to Present
• P2000I - Serial # 22208 to Present
• P2700 - Serial # 8445 to Present
• SP1000
• SP1002 Big E II

USSC Pellet Stoves:

• 5040 Pellet Stove
• 5520

USSC part # 80684
Replaces old part numbers A-E-101, C-E-101, and 610326.
OEM USSC part

May fit other models, please check your owner's manual for part number compatibility.
