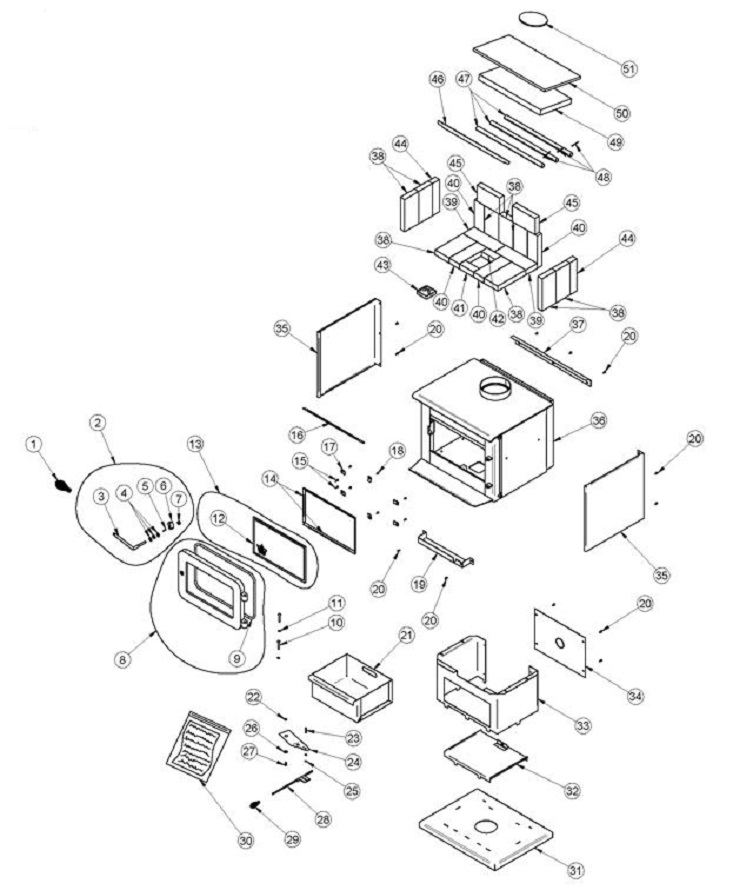

XTD 1.1 Parts Diagram
Flame Energy XTD 1.1 Interactive Parts Finder
Welcome to our Interactive Parts Diagram! Easily identify the parts you need by clicking on the diagram, a box will pop up with more info on the part. Or, use the handy parts list located below the image.
| #1 - SBI Brass Plated Coil Handle (AC07860) | Price: $10.00 | Part : AC07860 | view details |
| #3 - Drolet & Flame Energy Door Handle Shaft (PL53951) | Price: $25.00 | Part : PL53951 | view details |
| #5 - Drolet 1800I & Spark Latch Key Path Pin (30533) | Price: $5.00 | Part : 30533 | view details |
| #6 - SBI Steel Door Latch (30033) | Price: $20.00 | Part : 30033 | view details |
| #7 - Drolet Hex Head Locknut (30224) | Price: $4.00 | Part : 30224 | view details |
| #9 - SBI Door Gasket Kit (AC06500) | Price: $25.00 | Part : AC06500 | view details |
| #10 - SBI Door Hinge Pin (30169) | Price: $4.00 | Part : 30169 | view details |
| #11 - SCAN 5-2 Baking Door w/Glass - Grey (30055) | Price: $300.00 | Part : 30055 | view details |
| #12 - SBI Self Adhesive Glass Gasket - 6 Feet (AC06400) | Price: $15.00 | Part : AC06400 | view details |
| #15 - Drolet Pan Quadrex Zinc Screw (30123) | Price: $3.00 | Part : 30123 | view details |
| #21 - Drolet & Flame Ash Drawer (SE53931) | Price: $70.00 | Part : SE53931 | view details |
| #27 - Heatilator Caliber & Novus Series SIT Valve Bracket (30060) | Price: $9.00 | Part : 30060 | view details |
| #29 - Long Brass Plated Coil Handle for Osburn, Drolet & Flame Woodstoves (AC07864) | Price: $12.00 | Part : AC07864 | view details |
| #43 - SBI Ash Dump Plug (SE16059) | Price: $35.00 | Part : SE16059 | view details |
| #48 - Drolet & Empire Comfort Cotter Pins - 12 Pack (SE36250) | Price: $12.00 | Part : SE36250 | view details |
| #51 - SBI Baffle Insulation Weight (PL34026) | Price: $30.00 | Part : PL34026 | view details |
| #N/S - SBI Metallic Black Stove Paint - 12oz (AC05959) | Price: $25.00 | Part : AC05959 | view details |
